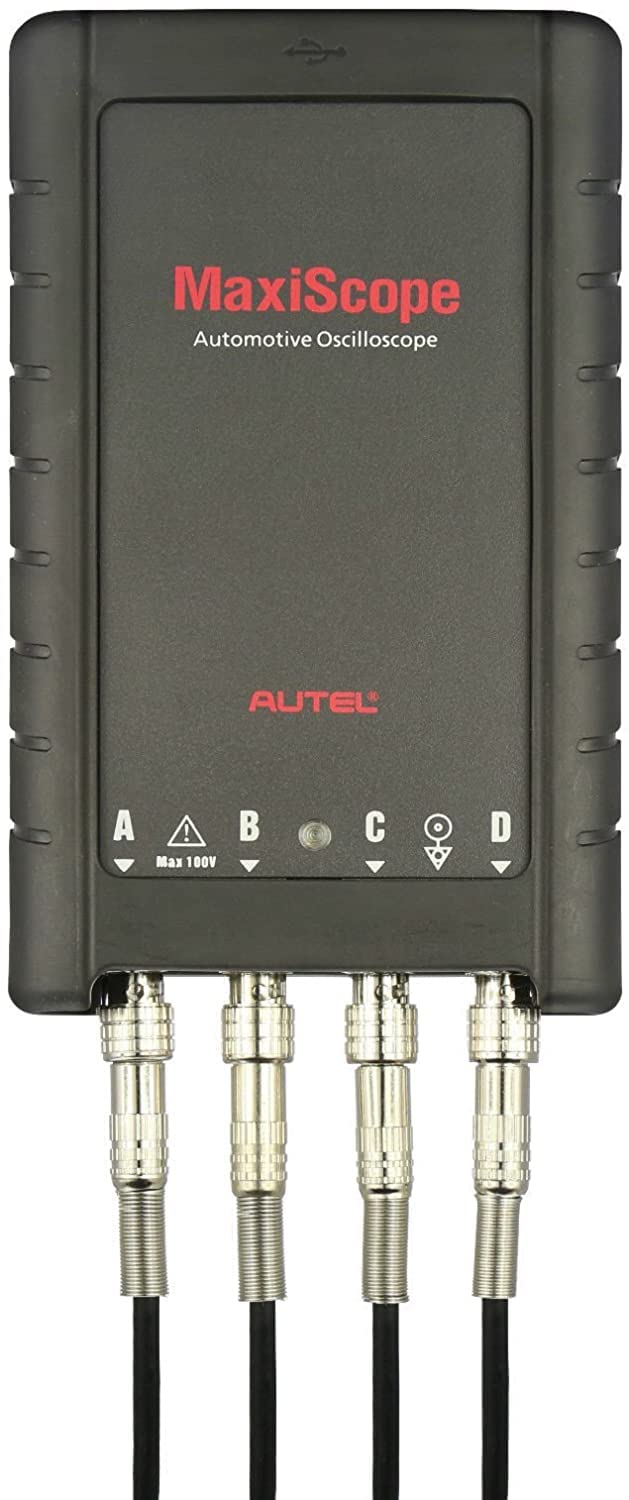

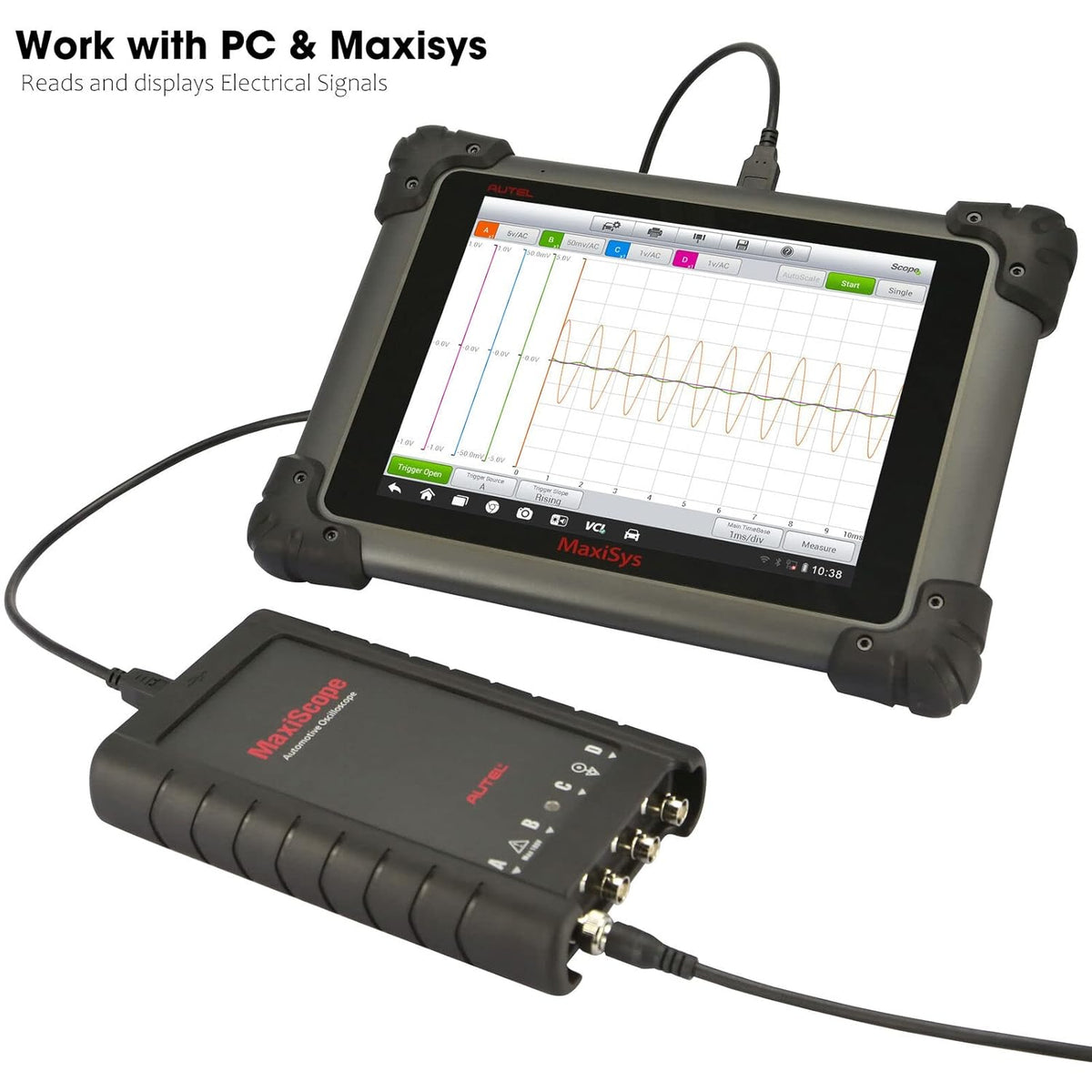

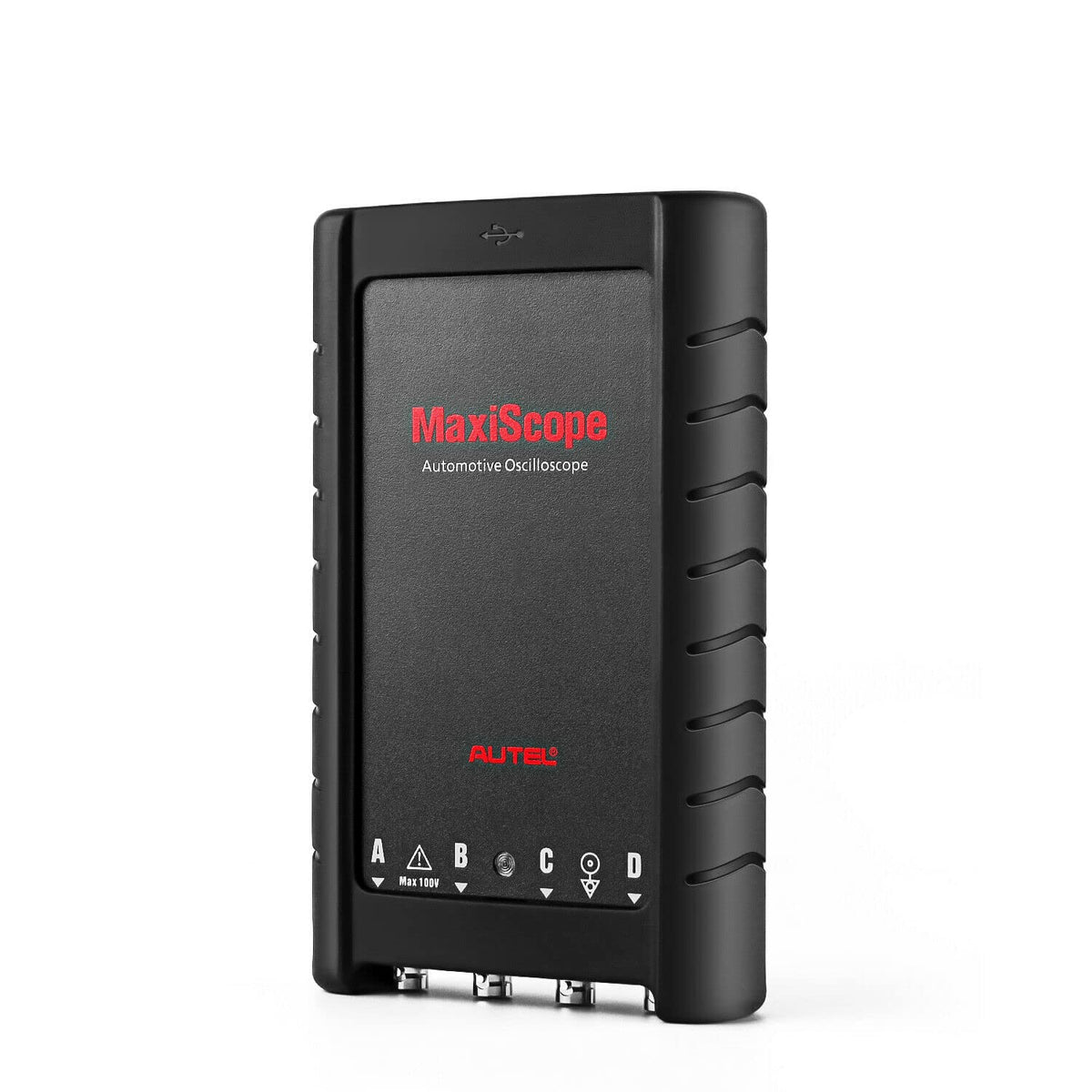

Autel MaxiScope MP408 measures and tests virtually all the electrical and electronic components and circuits in most modern vehicles. In addition, it can be used in a wide range of industries related with electronic signals. Autel MP408 is compatible with LIN, CAN and FlexRay data bus standards to read and display electrical signals in high resolution waveforms.Power for the MaxiScope MP408 comes directly from the USB port of the connected PC, so no batteries or power leads are required, making the system very versatile and portable to use.Autel MaxiScope MP408 measures and tests virtually all the electrical and electronic components and circuits in most modern vehicles. In addition, it can be used in a wide range of industries related with electronic signals.Autel MP408 can be used in conjunction with your computer or MaxiSys tablet. It will become a powerful diagnostic tool through the processing program MaxiScope software running on the computer or the processing program MaxiScope App running on the Android tablet computer. As an operation interface that displays waveforms and menus, it allows users to set test options, triggers, probe types, and various configurations to understand the internal workings of automotive electronic circuits.Autel MP408 can capture signals four times faster than any other oscilloscopes, a high speed sampling rate from 80MS/S TO 20MS/s and incredible bandwidth of 20MHz, which makes viewing waveforms on high resolution 8” or 10” color screen clear and simple.Power for the MaxiScope MP408 comes directly from the USB port of the connected PC, so no batteries or power leads are required, making the system very versatile and portable to use.Autel MaxiScope MP408 guarantees that this product will be free from all defects in materials and workmanship for a period of one (1) year from the date of the original purchase with free online software update through the Internet.
Specifications
Vertical resolution——12 bits
Channels —— 4
Bandwidth —— 20MHz
Accuracy —— 1%
Sensitivity ——10mV/div to 20V/div
PC Interface —— USB 2.0 – Cable supplied
Power Requirements —— Powered from USB port
Input Ranges (full scale) —— ±v50mV to ±100V in 11 ranges
Input Impedance —— 1MΩ in parallel with 22pF
Input Type—— Single-ended, BNC connector
Input Coupling——Software selectable AC/DC
Overload Protection—— ±200V on single input
Buffer Memory —— 32M samples shared among active channels
Waveform Buffer —— Up to 1000 waveforms
Timebase Ranges ——100ns/div to 1000s/div
Operating Temperature Range —— 0°C to 50°C (15°C to 40°C for quoted accuracy)
Storage Temperature Range —— -20°C to +60°C
Storage Humidity Range —— 5% to 95%RH, Non-condensing
Maximum Sampling Rate (Single Shot)—— -1 or 2 channels in use : 80MS/s
-3 or 4 channels in use : 20MS/s
Package Including
1pcs x Autel MaxiScope MP408 Interface
1pcs x 1.5m USB Cable
4pcs x 3m (10ft) Screened Test Leads
1pcs x Secondary Ignition Pickup
1pcs x 2-pin Breakout Lead
2pcs x Attenuators 20:1
1pcs x Large Crocodile Clip Set
1pcs x Small Crocodile Clip Set
1pcs x Acupuncture Probe Set
1pcs x Multimeter Probes
